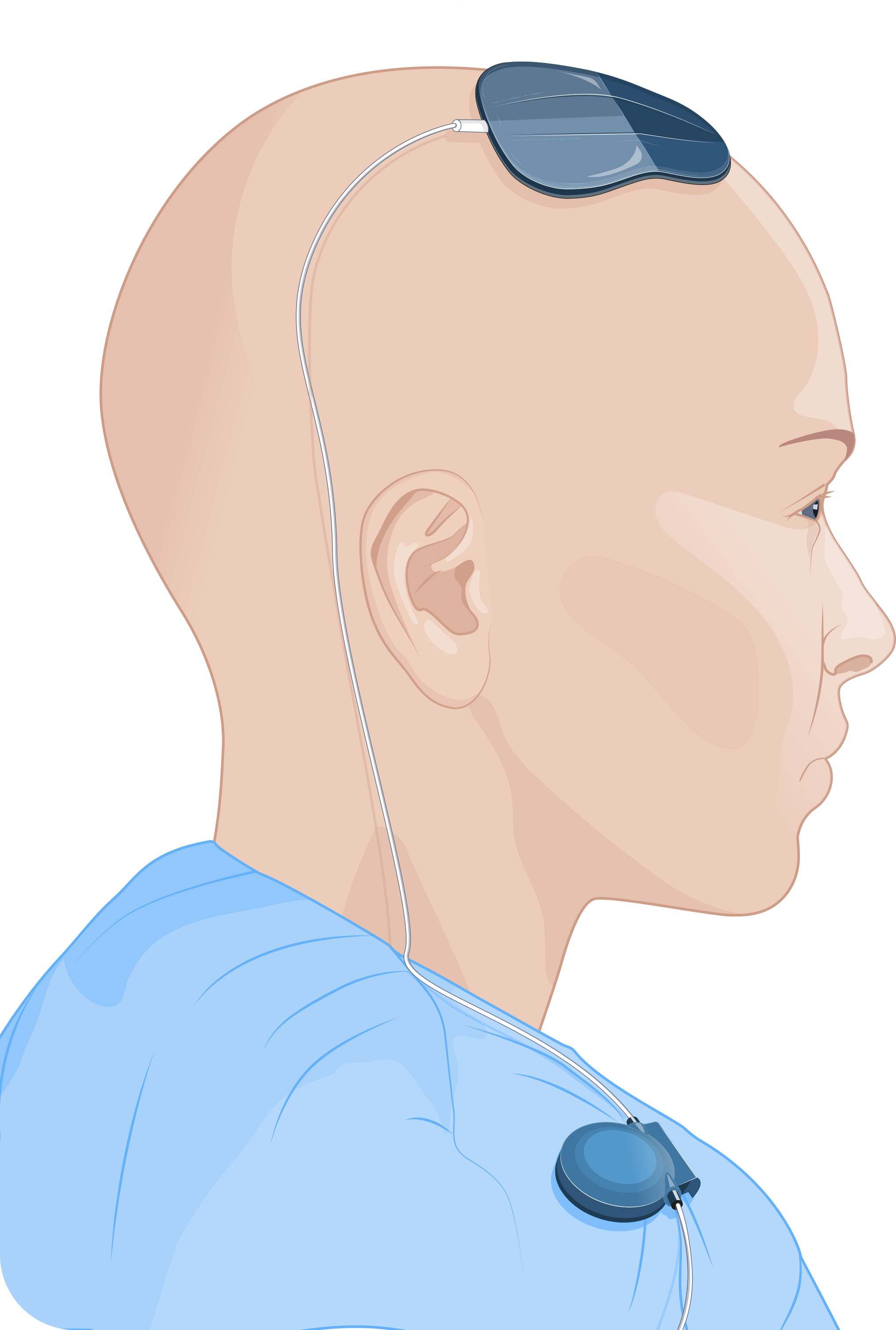

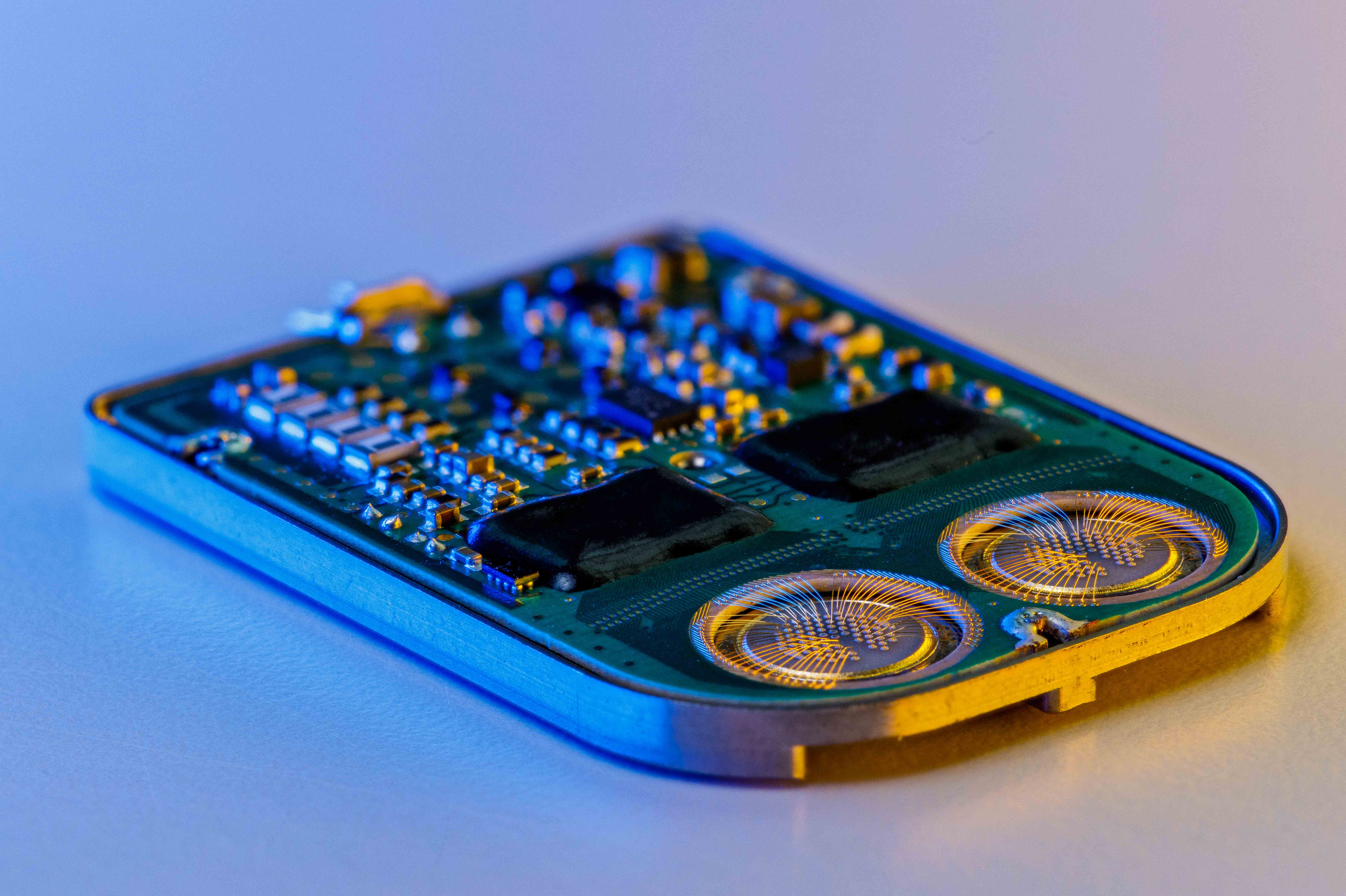

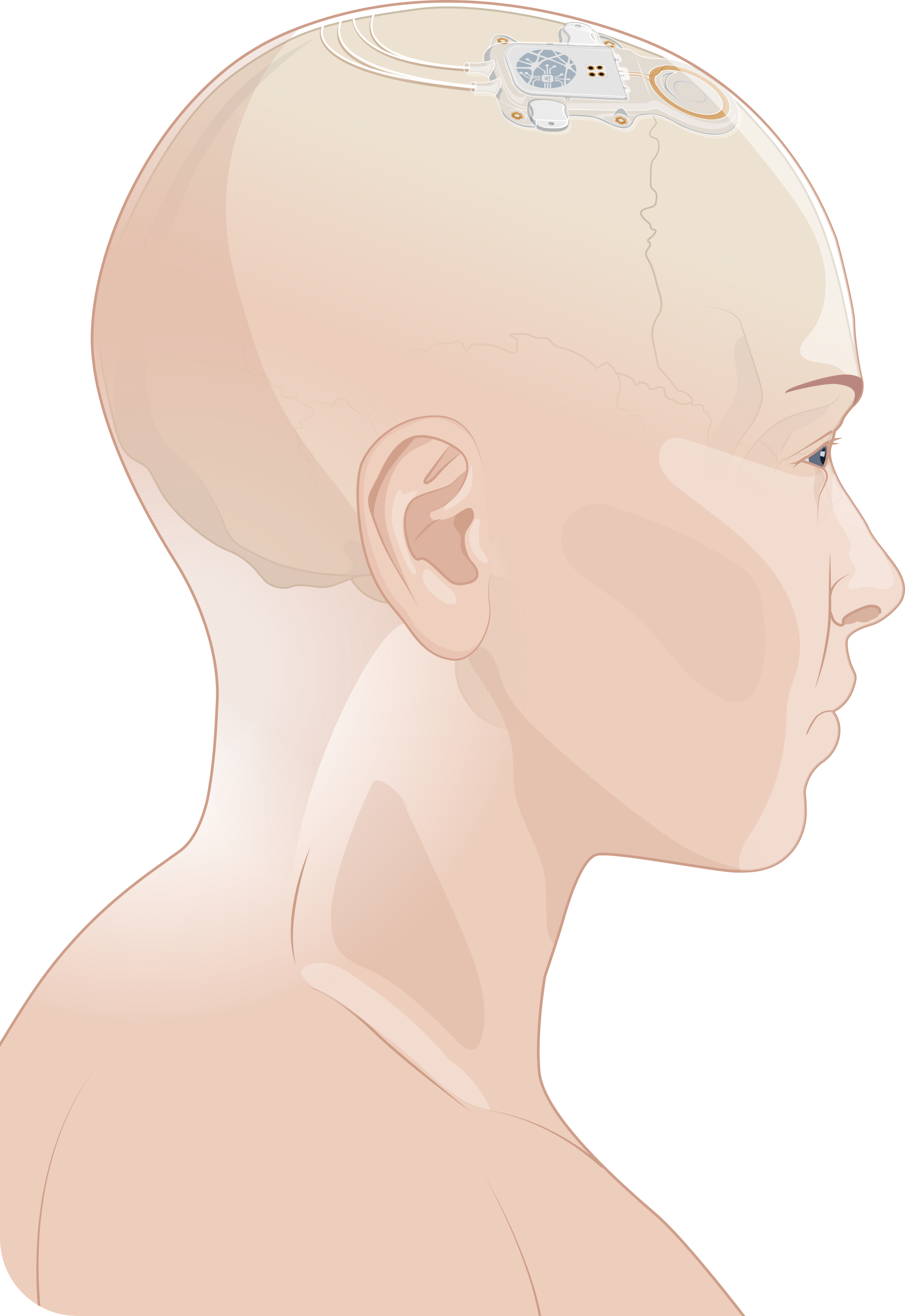

Implant artefacts in the neural data
What each Implant telemetry message, and its 7 s keep-alive, leaves on the 128 neural channels. Each setup and firmware shows its latest recording session (3 or 5 min, after flashing the Implant and restarting the Gate); click an earlier one under Sessions to show it instead.
Overview
Value / floor: the floor is what the measurement reads on noise alone; a value within ± its floor (greyed) is not distinguishable from noise. × / ÷ after a value: its magnitude relative to the first firmware of its setup (higher / lower); ÷> is a bound, against a value within its floor. “never alone”: every notification of that message came within 120 ms of another, so it has no average of its own.
How each quantity is measured
Messages: the median of the group’s channels (all 128, or each Intan’s 64) averaged around each notification of a kind (baseline 200–120 ms before it); the value is the average’s largest deviation, of either sign, from 20 ms before to 10 ms after the notification (an artefact can be a spike or a dip). Level: the average’s median over the 20 ms before the notification (0 unless the MCU’s state changes there, as with the paced-Vrect builds); a signed offset, so no ratio. Keep-alive: mean of the per-spike peaks. Lines: the sinusoid fitted at the line’s frequency outside telemetry windows. Noise: robust standard deviation outside telemetry windows, 5 Hz high-pass, mains removed. Mains: RMS of the 50 Hz component outside telemetry windows. Consumption: the Gate’s readings, mean over the recording.
Around each message
Median of the group’s channels, unfiltered, averaged over every message of a kind in a session; 0 ms (dashed) is the Gate’s notification (keep-alive: its own peak). Windows with a keep-alive or another message are left out, so each average shows one message. Shared y scale: one per message across panels; Per panel: each its own.
Noise spectrum
Amplitude spectral density of the median channel over each whole recording, spikes included, 0.25 Hz resolution, drawn as the largest value of each of 240 logarithmic bins at its own frequency.
Gate readings
Each reading as the Gate reported it, seconds since the recording started. Table: mean ± standard deviation over each recording after its first 10 s. Main current and temperature: the average of the Implant’s two readings.
Sessions
Every included session of the selected setups and firmwares. Click a row to show that session instead of the latest; click again to go back.
